Other Actions

In addition to creating and querying instances of a form, there are multiple actions applied to the use of forms that provide additional value and help optimize the workflow.

Let's take a look at some of them below.

Get Form Instance State

Returns the state of a form instance, i.e., whether it is in draft or confirmed state. It includes the following parameters:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
state	Out	Text	State of the form instance
lastSaved	Out	Text	Date and time of the last save
Response	Out	Collection	Collection containing all the above data of the form instance

Get Form Instance Response

Includes the properties of Get Form Instance State but also allows collecting the data entered in a form instance, displaying them as values. Its properties are as follows:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
formDefinitionID	Out	Text	ID of the template to which the instance belongs
formInstanceId	Out	Text	ID of the form instance, as it will be included in the final output
lastSaved	Out	Text	Date and time of the last save
state	Out	Text	State of the form instance
values	Out	Collection	Values entered in the form instance
Response	Out	Collection	Collection containing all the above data of the form instance

Get Form Instance Token

Allows generating a new public token for a form instance (e.g., because it has expired) by defining the following parameters:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
expiresAt	In	Date and Time	Expiration date of the token
formInstanceId	Out	Text	ID of the form instance, as it will be included in the final output
sharedFormToken	Out	Text	Token that allows viewing and modifying the generated instance
URL	Out	Text	Accessible URL formed by the base URL and the token
Response	Out	Collection	Collection containing all the above data of the form instance

Set Form Instance Process Info

Allows users of the portal or the Teams application to review the status of the forms they have submitted, which is reflected in the "Process Status" and "Completed" columns.

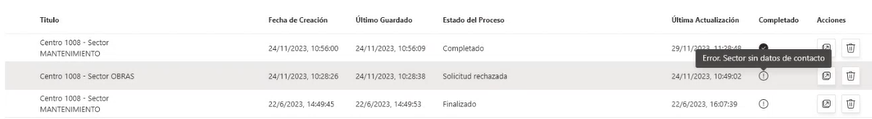

Visualization of a form's status in the Portal

This action is configured with the following parameters:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
status	In	Text	Processing status of the instance to be displayed to the user
endState	In	Text	Final processing status, with options "OK" or "Error"
completionMessage	In	Text	Message specifying the conditions under which the instance was completed

Delete Form Instance

Allows deleting a form instance. Its main properties are:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
force	In	Flag	Forces the deletion of an instance

Get Attachments / Download Attachment

These actions are closely related, as the first allows listing all attachments in the fields of a specific instance, and the second allows downloading all files from the obtained list.

Let's look at the properties of the Get Attachments action:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	ID of the form instance
stageIndex	In	Number	Stage from which the attachments are obtained
Attachments	Out	Collection	List of URLs to download the files

On the other hand, the Download Attachment action includes the following parameters:

Parameters	Direction	Data Type	Description
AttachmentURL	In	Text	URL from which to download the file
Path	In	Number	Path where the downloaded file will be saved

Upload FormInstance Resource / Delete FormInstance Resource

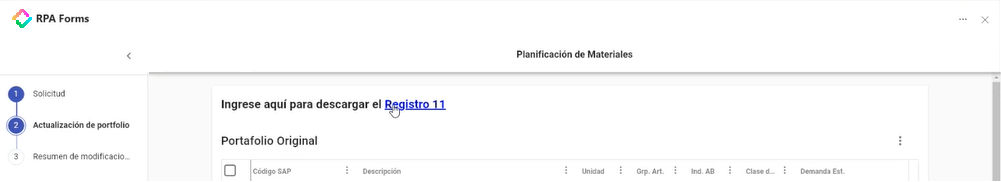

These actions allow, respectively, adding and deleting a resource from a form instance. The type of resources managed this way are not included in the form design but are added as external links with downloadable material:

The properties to define for uploading a new resource are:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	URL from which to download the file
Path	In	Number	Path where the file will be attached

To delete it, however, the following must be set:

Parameters	Direction	Data Type	Description
formInstanceId	In	Text	URL from which to download the file
ResourceName	In	Text	Name of the resource whose attachment is to be deleted
